VALVE HOUSING RCV-125

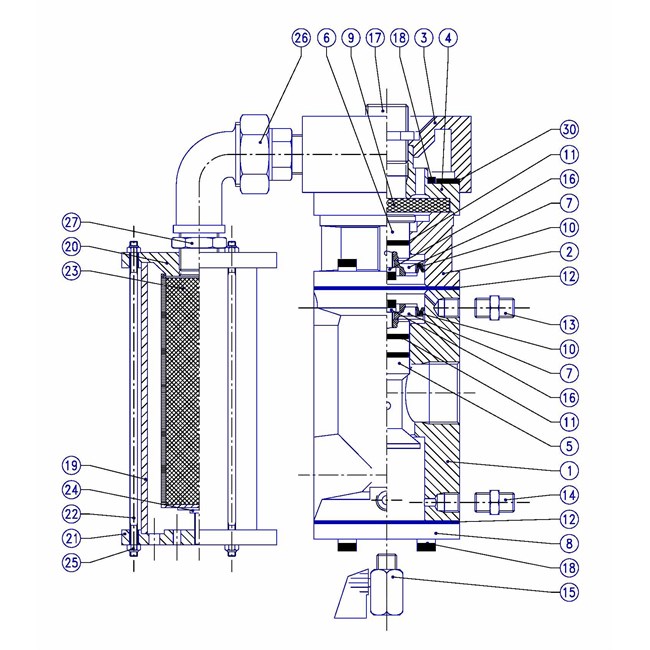

RCV-125 REMOTE CONTROL VALVE - Parts Item Part no. Description Qty 01 1206000 Valve housing 1 02 1206100 Bleed-off cylinder housing 1 03 1206200 Bleed-off manifold 1 04 1206300 Top cover 1 05 1206400 Inlet valve 1 06 1206500 Bleed-off cylinder 1 07 1206600 Piston 2 08 1206700 Bottom plate 1 09 1206800 Diaphragm * 1 10 1206900 Piston seal * 2 11 1207000 O-ring * 3 12 1207100 Packing * 2 13 1178000 Brass hex nipple ¼” 1 14 1178000 Brass hex nipple ¼” 1 15 1152000 Ball valve ¼” 2 16 1207200 Piston screw 8x15 2 17 2225400 Hex nipple ¾” 1 18 1207400 Screw 8x25 12 19 1207600 Silencer housing 1 20 1207700 Silencer top cover 1 21 1207800 Silencer bottom plate 1 22 1207900 Silencer housing pin 5x215 3 23 1208000 Silencer cartridge 1 24 1208100 Silencer cartridge support 1 25 1208600 Nut 6 26 1208400 Union elbow 1 27 2225400 Hex nipple ¾” 1 28 1208700 Check valve (not shown) 1 29 1207500 Plug ¼” (not shown) 1 30 1209600 O-ring * All *-marked items are included in RCV-125 Repair kit (art.nr. 12050) in quantities shown.
