Master Paint plate Multitester

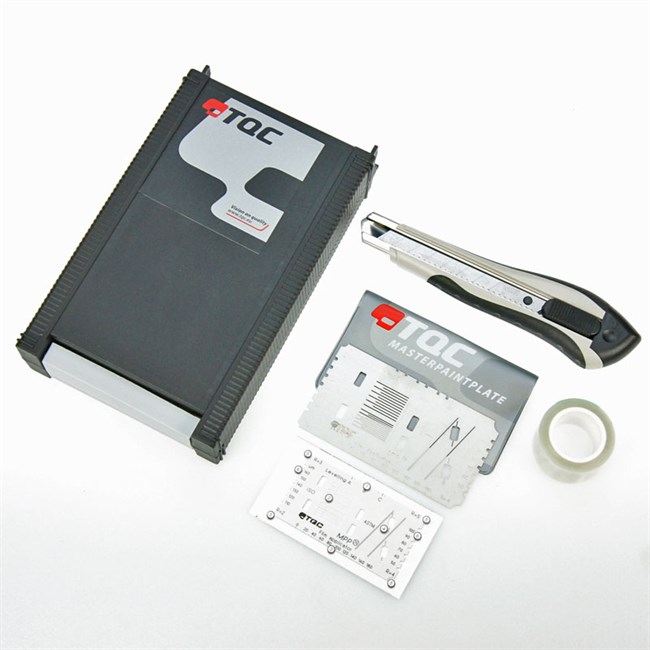

The TQC Cross Cut Adhesion Test KIT (Master Paint Plate) is a stainless steel measuring tool that features: a 1 mm, 1.5 mm, 2 mm and 3 mm cross cut adhesion test according NEN-EN-ISO 2409:2003 and ASTM D 3359 (X-cut) andreas cross, wet film thickness gauge from 50 up to 160 microns, edge grind checker for correct roundness of edges, wet film applicator ranging from 0 to 180 µm as well as leveling test providing an indication of the viscosity of the coating. Delivery includes cutting tool and tape. Tape For Adhesion Test according ISO 2409:2003 and Tape For Adhesion Test according ISO 2409:1999 can be ordered separately as well. BESTILLINGSINFORMASJON Art. nr. SP3000 TQC Cross Cut Adhesion Test Kit (Master Paint Plate) - Dimensions: 100 x 55 mm. - Cross cut test ASTM and ISO - Wet film thickness test (50-160µ, in steps of 10µ). - Levelling test (1, 1.5 and 2 mm) - Film applicator (0-180µ, in steps of 20µ). - Edge radius 2, 3, 4 and 5 mm
