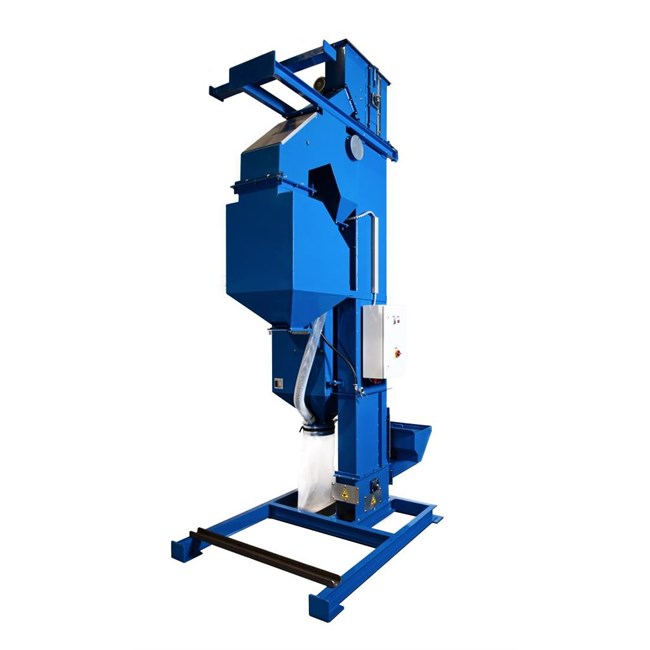

RC-50-20 Mobile Abrasive Recycling System

Page 6 of 23 TECHNICAL DESCRIPTION - GRITRECYCLINGSYSTEM TYPE RC-50-20 Dimensions (in standing position) Height : 4.000 mm Width : 1.500 mm Depth : 1.800 mm Weight (with empty silo) : ± 650 kg The used abrasive has to be put into the abrasive hopper, then it comes in a regulated flow to the elevator. From the elevator it comes into a cascade system. The air wash action can be regulated to control the size of the reusable abrasive. Dust and nonusable (to fine) abrasive are automatically discharged and collected in big bags or extracted by the separate filter PF1. The cleaned abrasive will fall into the abrasive silo and is ready to be store into a blast vessel. Elevator E50 Gear motor : 0,75 kW Capacity : 50 l/min. Closed dust free bearings systems. Special belt with Columbus buckets. Cascade cleaner K350 Consisting of one heavy duty cascade system with double air wash action of the abrasive, mounted directly onto the outlet of the elevator. Oversized materials are separated by screens in the bucket elevator hopper. Cascade cleaner is connecting with a suction ducting Ø 180mm to the filter unit PF1-L. Cartridge dust-filter PF1-L Exhaust capacity : 960 m³/h Static pressure : 1.200 Pa. Electric motor : 0,75 kW, 400/690 V,3 Phase, 50 Hz. Filter cartridges : 1 pcs - Ø 325x1000mm Filter area : 15 m² Filter material : Polyester fabric Filter percentage : 99,9 % Max. dust emission : < 1,5 mg/nm³ Cleaning : continuous by compr. air max. 5 bar Solenoid valves : 1 pcs (1" G) Cleaning pressure : 4 bar Cycle time : adjustable Sequence : 1 cartridge simultaneous Collecting bags : PVC bag Operating principle Dust laden air enters through the inlet plenum of the collector, where heavy particles fall immediately into the hopper. As the air flows through the filter cartridges, dust is deposited on the outside of the filtering media. The filter cartridges are cleaned automatically and continually without interrupting the operation of the dust collector. An adjustable timer controls the cycle time. Solenoid valves introduce jets of high-pressure air into the cartridges in turn, through the venture opening above each cartridge. The resulting reverse airflow cleans the filter cartridges. Dust removed from the filter surface settles into the hopper. As each pair of filter cartridges is cleaned in succession, the remaining stay Abrasive silo 200 liter Silo constructed of 3mm steel plate and profiles complete with abrasive stop and connection for 1 outlet for 1 blast vessel. Electrical panel Further complete with electrical panel with automatic switch controllers, main switch, signalling lamps and control buttons for: ? Electric motor E50 0,75kW ? Electric motor fan PF1-L 0,75kW. Dust-collector PF1-L provided with 1 pulse valve 24Vdc. Electrical panel is including CEE-plug.
