AIRBLAST TRYKK BLÅSEKABINETT ABD1000

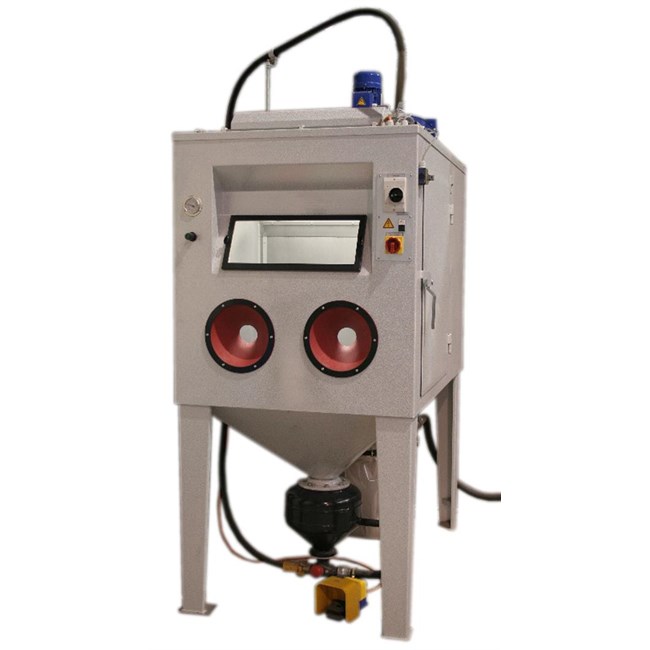

BLASTING CABINET TYPE ABD-1000 This compact installation is generally suitable for several shotblasting operations, for example: ? cast and construction operations ? the removing of mill scale, rust, coating layers ? to dull non ferrous metals The execution is according the compressed air system. The shotblasting vessel is constructed at the shotblasting funnel directly under the shotblasting space and provided with wear resistant parts which need little maintenance. The dust filterinstallation is constructed behind the working space and provided with a seperator beforehand. The back- and sidewall and the door of the shotblasting space is completely covered with 3mm rubber. The installation is constructed of 3mm steelplate and finished with a coatinglayer in the colour grey. Dimensions: Height : 2.400 mm. Width : 1.020 mm. Depth : 1.700 mm. Working area: Height : 1.000 mm. Width : 1.000 mm. Depth : 1.000 mm. Door: Width : 700 mm. Height : 850 mm. Specifications shotblasting cabine: - revolving door (positioned at the rightside of the cabine) with safety control switch. - lighting 4x18 Watt. - 3 perforated grids in working area. - 1 window exchangeable. - 1 window securit. - 2 flexible rubber openings. - build-in controlpanel with main switch, control safety switches for exhauster and lighting. - 1 nozzle holder AS19 with 6mm Borium Carbid nozzle. - blasthose 3/4" which is guided through the roof of the machine. - reducing valve (0 - 10 bar) operated by a pilot valve with manometer on the front of the machine. - electric footpedal to operate the blastvessel. Automatic blasting vessel Dimensions: Diameter : Ø 350 mm. Max. Pressure : 6 Bar.
