HUSKY 1050A A01 A A2 SS PT TP PT

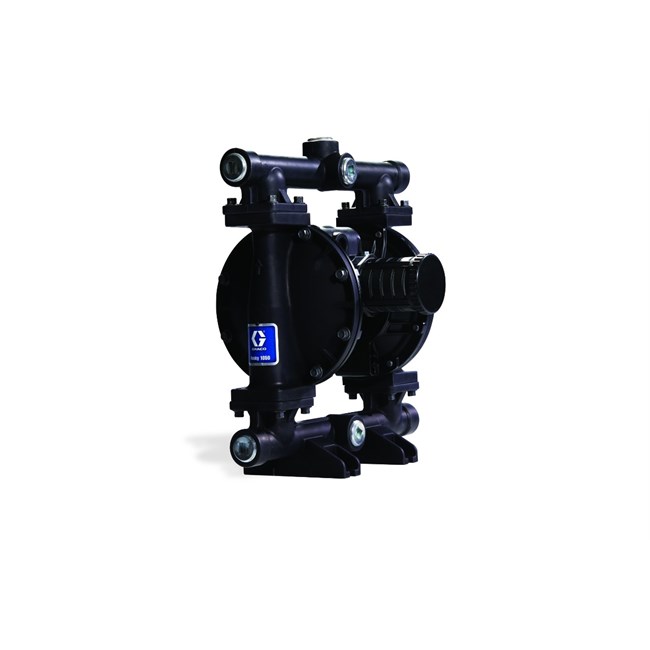

Husky 1050 Air-Operated Diaphragm Pump Maximum fluid working pressure 8.6 bar, 0.86 MPa Air pressure operating range 1.4-8.6 bar, 0.14-0.86 MPa Fluid displacement per cycle 0.64 l Air consumption 0.7 m³/min at 4.8 bar, 0.48 MPa, 76 lpm Maximum values with water as media under submerged inlet conditions at ambient temperature: Maximum air consumption 1.9 m³/min Maximum free-flow delivery 189 lpm Maximum pump speed 280 cpm Maximum suction lift (varies widely based on ball/seat selection and wear, operating speed, material properties, and other variables) 4.9 m dry, 8.8 m wet Maximum size pumpable solids 3.2 mm Recommended cycle rate for continuous use 93 - 140 cpm Recommended cycle rate for circulation systems 20 cpm Sound Power* at 70 psi (4.8 bar, 0.48 MPa) and 50 cpm 78 dBa at 100 psi (7.0 bar, 0.7 MPa) and full flow 90 dBa Sound Pressure** at 70 psi (4.8 bar, 0.48 MPa) and 50 cpm 84 dBa at 100 psi (7.0 bar, 0.7 MPa) and full flow 96 dBa
